Product name:

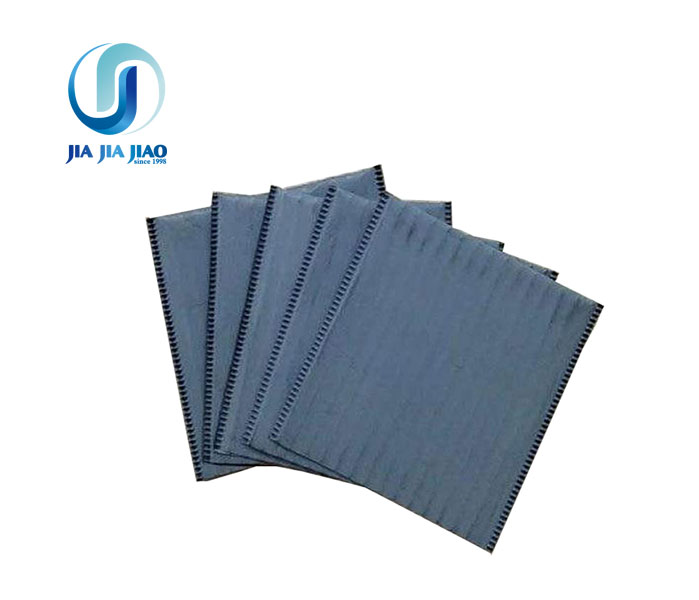

PE Storage Battery Separator

Inquire Now None

There are four types of PE separator:

1) Automotive separator: Rids on both side of PE separator would minimize the separator cracks caused by the oxidation, thus, extend battery’s life. Adapt to SLI batteries and maintenance-free automotive batteries.

2) Motorcycle separator: Rids on both side of PE separator would minimize the separator cracks caused by the oxidation, thus, extend battery’s life. Adapt to motorcycle batteries.

3) Industrial separator: The miniribs design makes the positive plate maintain more electrolytes, while negative plate keeps definite exhaustion, which can improve battery’s performance. Adapt to traction batteries and stationary batteries.

4) PE separator with glass mat: PE+GM would enhance the separator’s oxidation resistance by separate the separator with the plate. The flat glass mat also will prevent the plate active material from shedding, and extend battery’s life. Adapt to high vibration and deep discharge batteries, such as batteries for engineering machinery, taxi and tractor.

Item	Unit	Parameters
Item	Unit	PE+GM 0.300	PE+GM 0.600	PE+GM 0.800
O/A	mm	Standard±0.100	Standard±0.100	Standard±0.100
Laminate Inset from Separator Edg	mm	8.0±2.0	8.0±2.0	8.0±2.0
Electrical Resistance	Ω.d㎡	≤0.0015	≤0.0015	≤0.0015
Porosity	％	≥55	≥55	≥55
Moisture Content	％	≤4.0	≤4.0	≤4.0
Dimension Stability	％	≤1.0	≤1.0	≤1.0
Acid Weight Loss	％	≤4.0	≤4.0	≤4.0
Fe Content	％	≤0.010	≤0.010	≤0.010
Cl Content	％	≤0.030	≤0.030	≤0.030
Reducing Substance	Ml/g	≤10	≤10	≤10

Features:

Best performance:

higher pore volume

lower electrical resistance

lower acid displacement

optimal pore size distribution for controlled oxgen to transfer

PE Storage Battery Separator
